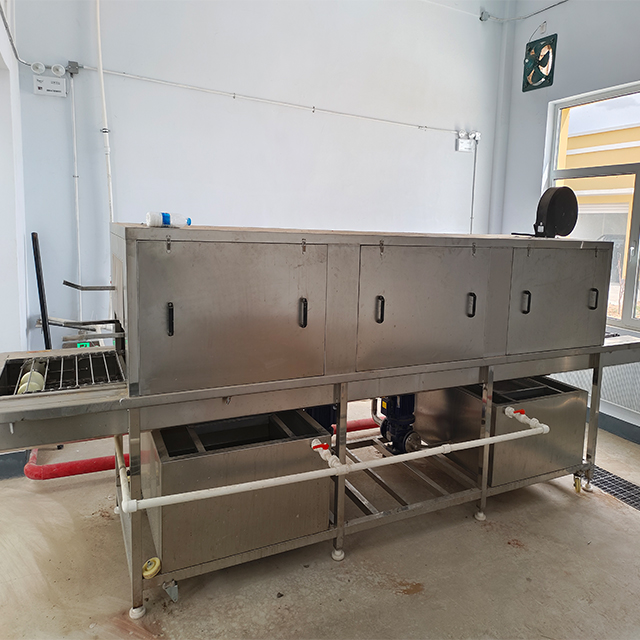

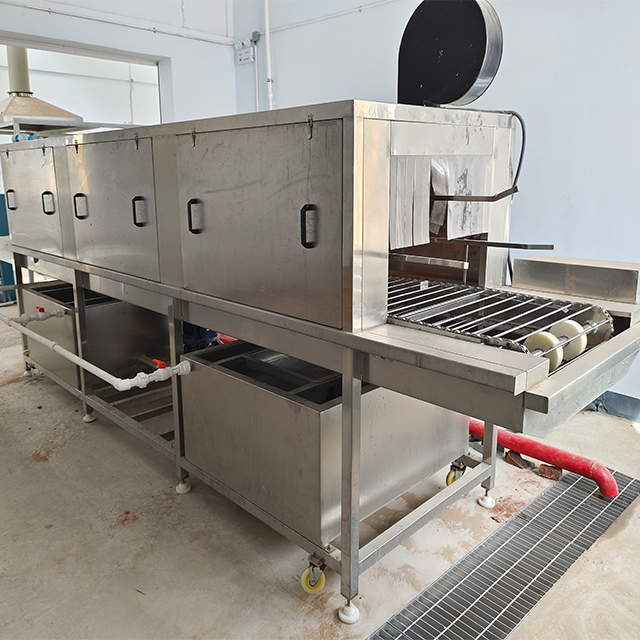

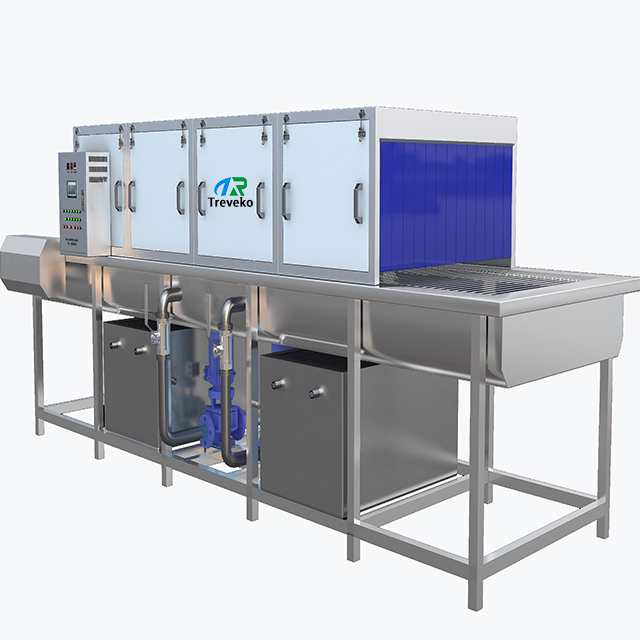

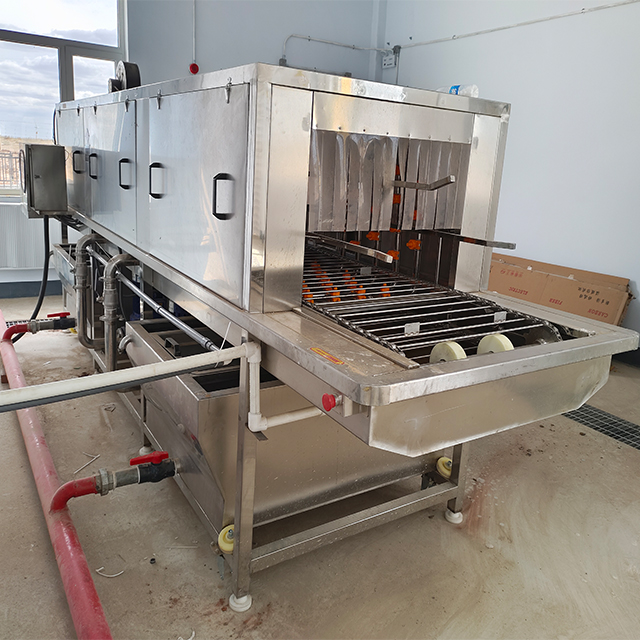

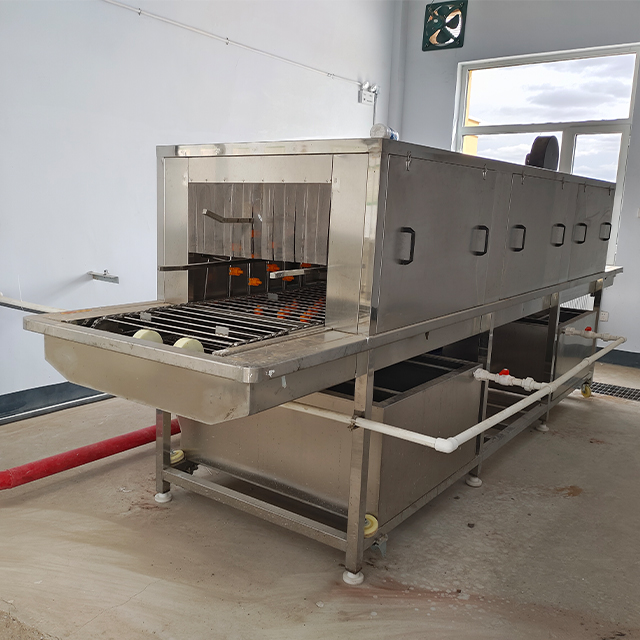

Medical Waste Turnover Box Cleaning Machine

The medical waste turnover box cleaning machine consists of a conveying and guiding system, a pre-wash water tank, a main cleaning water tank, a rinsing tank, a drying tank, an equipment cleaning cover, a water supply spray system (including a water supply temperature controller), a high-temperature steam device, and an input/output system, which can be reconfigured according to the user's actual needs .

The pre-wash water tank, main cleaning water tank, rinsing tank and water supply spray system are connected by industrial quick-connect pipes for easy disassembly and maintenance. The pre-wash water tank and main cleaning water tank are equipped with steam heating and temperature control devices, and the water temperature can be automatically controlled according to the cleaning materials.

The water supply and spraying system features automatic, unified water supply and drainage. It utilizes a stainless steel high-pressure pump, ensuring high pressure and excellent spraying effect. The nozzles can be easily and quickly disassembled and replaced by hand, and are adjustable in 360° direction. Maximum water consumption is only 0.5 m³/h. The system employs multi-layer filtration to maximize the water circulation rate during cleaning; the filter tank is easily removable and convenient for cleaning.

The conveyor system uses frequency conversion speed regulation, which can be adjusted within the range of 2-10 meters per minute. The conveying speed can also be set according to customer needs to meet cleaning requirements under different conditions. The guide rods of the conveyor system are adjustable to meet the cleaning requirements of various standard medical waste turnover boxes of similar models but different sizes. An emergency stop button is provided on the inlet and outlet sides of the conveyor system. The equipment cleaning cover is removable to ensure safety and facilitate cleaning, maintenance, and repair.

Medical waste turnover box cleaning machines are widely used in various types of medical waste disposal centers and are suitable for large and medium-sized hospitals and other places that generate a lot of medical waste, to sterilize and clean the medical waste containers in the premises.

Equipment features:

• It can clean medical waste turnover boxes of various sizes and has good adaptability : The conveying and guiding system of this medical waste turnover box cleaning machine adopts frequency conversion control, which can adjust the conveying speed in real time to adapt to medical waste turnover boxes of different sizes. The adjustable guiding system can fix different models of medical waste turnover boxes to meet the cleaning work of different models of medical waste turnover boxes.

• The equipment boasts high safety performance and is easy to disassemble and maintain : Emergency stop buttons are installed at the input and output ends of the medical waste turnover box cleaning system's conveying and guiding system, allowing for manual emergency shutdown in case of program errors. The water supply and spraying system uses quick-connect industrial pipes, paired with quick-connect 360° rotating nozzles. The equipment's cleaning cover features a quick-disassembly design. The entire system operates safely, and disassembly and maintenance do not require complex tools.

• Automated intelligent control meets various cleaning requirements, saving water and energy : The entire system adopts PLC intelligent program control, and the medical waste turnover box cleaning machine conveying and guiding system adopts frequency conversion control, which automatically adjusts the speed according to the usage requirements. The cleaning effect of the turnover box is controlled by changing the time of the turnover box in the pre-cleaning, main cleaning and rinsing processes. The cleaning water is automatically replenished into the rinsing water tank, the rinsing water is automatically put into the main cleaning water tank, and the main cleaning water is automatically put into the pre-cleaning water tank. Each water tank is equipped with a quick-release filter device to achieve the purpose of full energy-saving recycling of water resources. It is also equipped with a 360° rotating quick-connect nozzle to improve cleaning efficiency and save water and energy.
