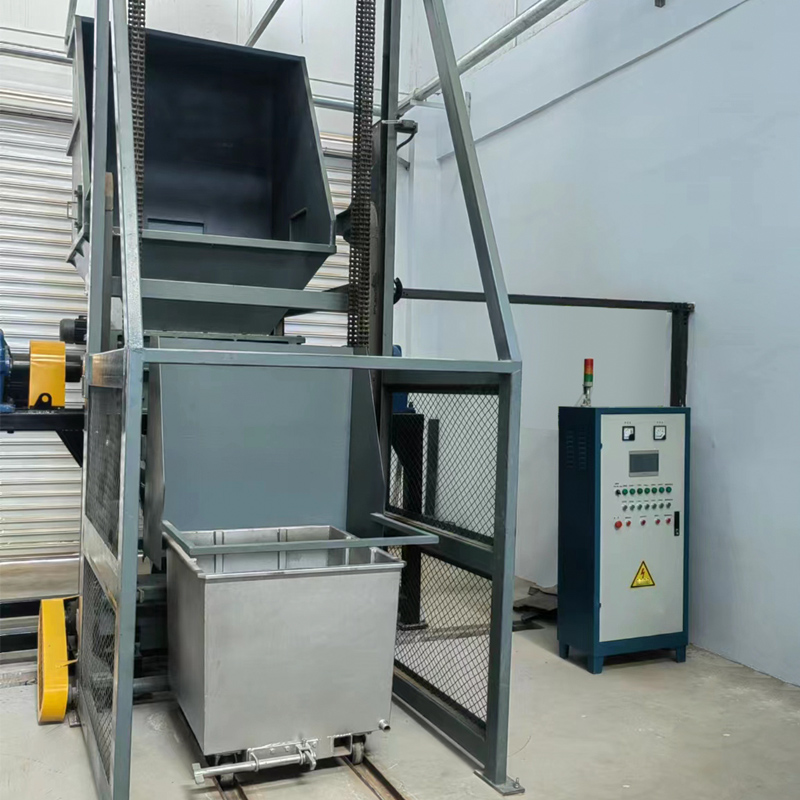

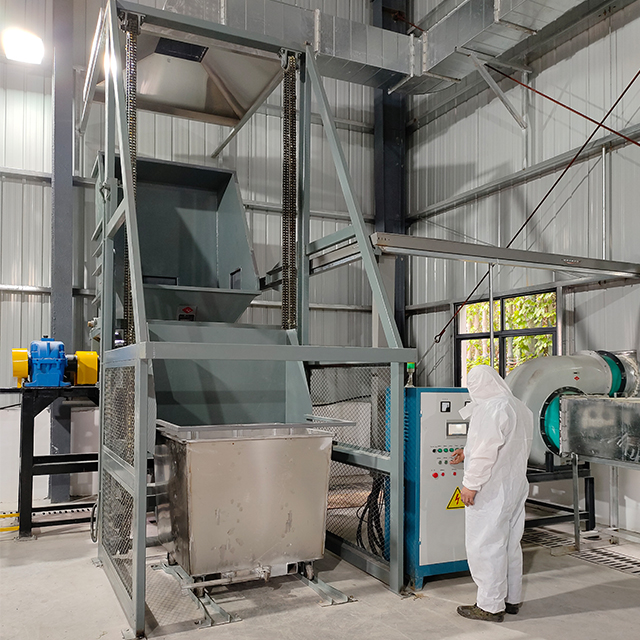

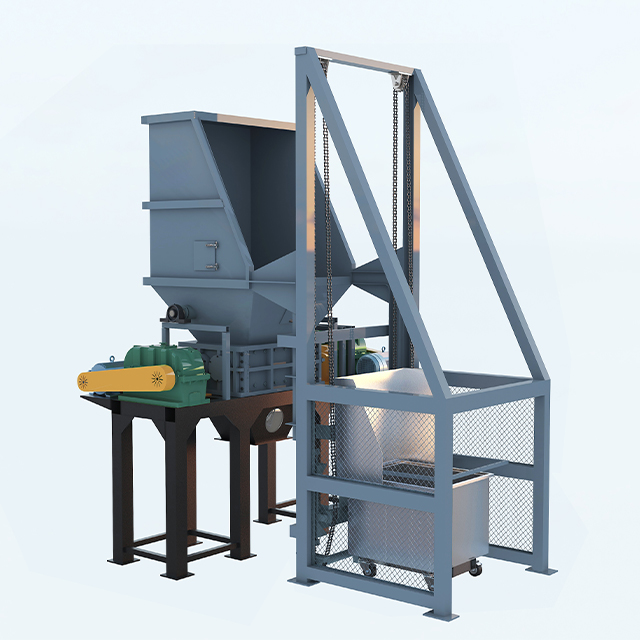

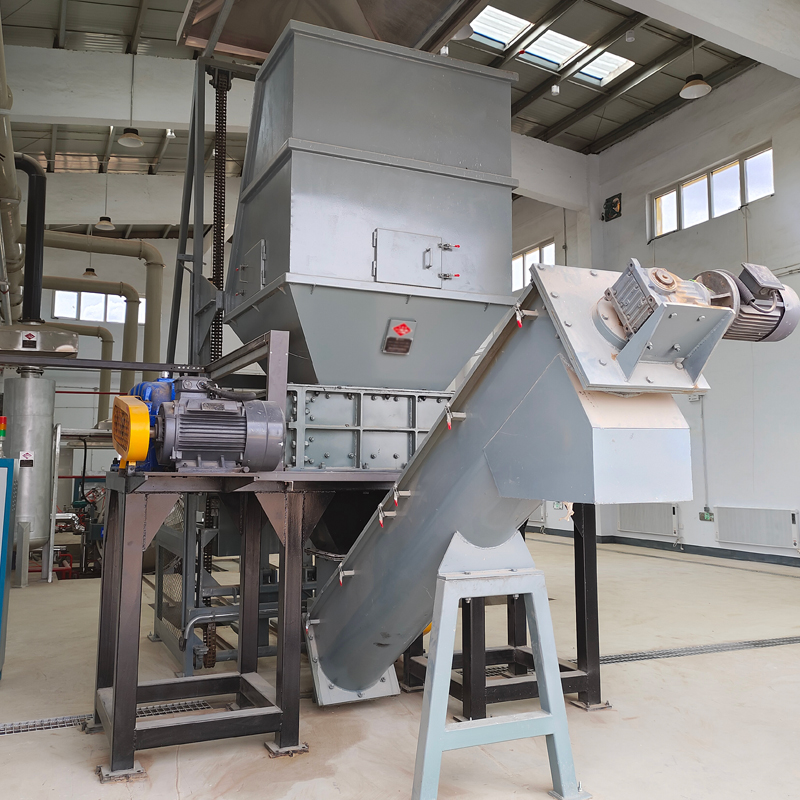

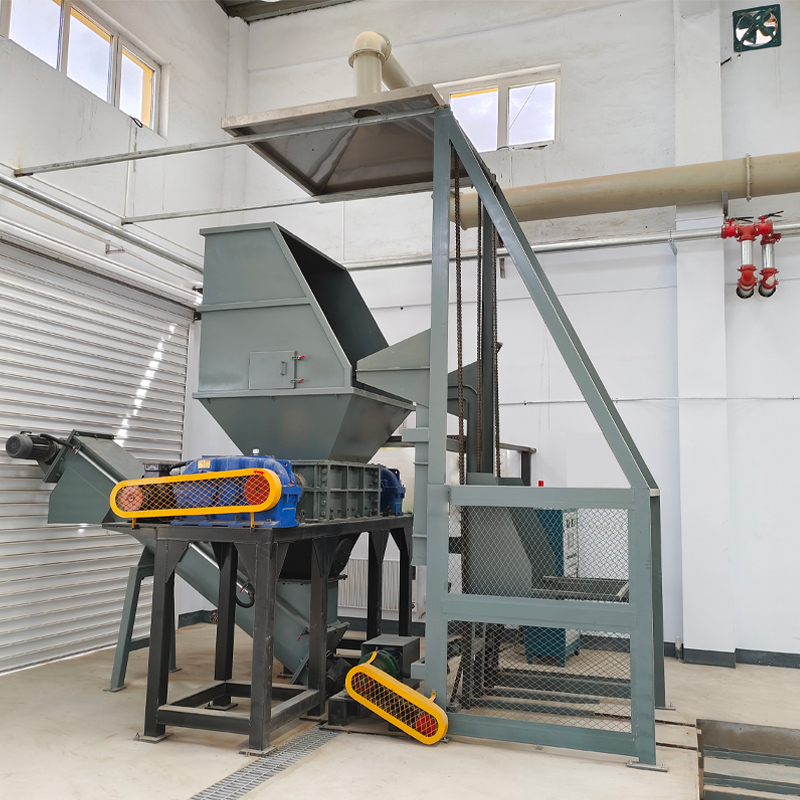

This medical waste shredder is widely used for the crushing and volume reduction of various medical wastes. The shredder is equipped with an automatic hopper at the top, with a shredding chamber below. The shredding method is shear-type shredding. This shredder boasts advantages such as high crushing efficiency, excellent crushing effect, long service life, energy saving and environmental protection, and intelligent reliability. It can completely crush easily tangled materials such as straps and ties in medical waste. The tearing, squeezing, and shearing action of the cutter shaft crushes various medical wastes to approximately 50mm in size. The crushed medical waste is then transported to subsequent equipment for further sterilization, disinfection, and harmless treatment. It is primarily suitable for the crushing and volume reduction of medical waste in large-scale medical waste treatment centers.
Crusher application materials
※1. Small medical devices • Clinical waste • Expired medications
※2. Infectious waste • Various plastic waste • Latex material waste
※3. Waste items such as syringes, prostheses, rags, blood-stained gauze, and disposable bed sheets.
Equipment Introduction
※1. It adopts a double-row moving blade shearing crushing method, with a unique double-row spiral crushing moving blade, which is especially suitable for tough materials such as straps and ties in medical waste. The moving blades and stationary blades are durable.
※2. A unique design prevents soft and tough materials from getting tangled in the blade;
※3. Driven by a low-power motor, it is highly efficient and consumes little energy;
※4. Can be equipped with a lifting device for direct automatic feeding, saving labor;
※5. It can achieve full PLC control, is easy to operate, and has low maintenance costs.
※6. Self-protection measures: If the power requirement for crushing hard objects is exceeded, the device will flip twice and try to crush them again. If the device fails to crush the object after two flips, an alarm will be triggered.
Shattering effect
model | Cutting tooth diameter | Crushing chamber size | Processing volume | Motor power (kW) | Body dimensions (mm) |
TR-2S0306 | Φ300 | 330x360 | 2-3T/h | 7.5 | 1520x730x1350 |
TR-2S0308 | Φ365 | 500x600 | 3-5T/h | 15 | 2250x1390x2900 |
TR-2S0410 | Φ365 | 500x860 | 5-9T/h | 22/30 | 2650x1900x2900 |
TR-2S0412 | Φ400 | 650x1200 | 9-15T/h | 45 | 3200x2900x4000 |
TR-2S0415 | Φ400 | 1522x766 | 10-12T/h | 45x2 | 4400*1900*3400 |
